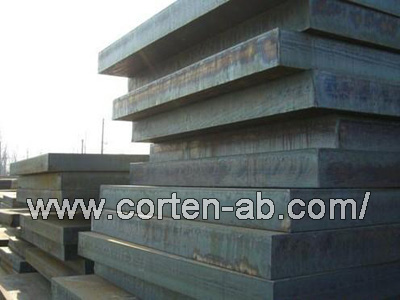

S235J0W steel plate

S235J0W weathering steel grade is a hot rolled products of structural steels in technical delivery conditions with improved atmospheric corrosion resistance.S mean S235J0W grade could be used in structural steel projects,235 is the min yield strength.J0,J2 and K2 standard for the impact degree and energy in 0 temperature.W means that the mainly different in their carbon and phosphorus contents and availability.Thickness:8mm-300mm,Width:1500-4020mm,Length:3000-27000mm.S235J0W steel surface treatment: Shot blasting and painting or coated.

S235J0W steel chemical composition %

C max	Si max	Mn	P max	S max	N max	Cr max	Cu max
0.13	040	0.20-1.60	0.035	0.035	0.009	0.4-0.8	0.25-0.55

S235J0W steel Mechanical Properties

Grade	Min. Yield Strength Mpa						Tensile Strength MPa			Impact
S235J0W	Nominal Thickness (mm)						Nominal Thickness (mm)			degree	J
Thick mm	≤16	>16 ≤40	>40 ≤63	>63 ≤80	>80 ≤100	>100 ≤150	≤3	>3 ≤100	>100 ≤150	0	27
S235J0W	235	225	215	215	215	195	360-510	360-510	350-500	0	27

Any need in S235J0W steel grade,please feel free to contact us by email or calling to us, we will reply our competitive price to you soon.you can get more about the S235J0W weathering steel here.
