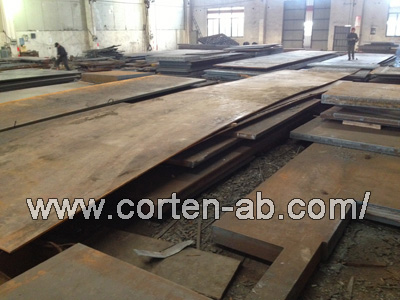

BS4360 50B steel plate

50B/50B steel/50B steel plate,with the specification of BS4360. BS4360 50B steel plate,mainly used for the production of various types of steel rivet,steel bolt,steel weld and other structural components.and we are specialized in supplying steel plate in 50B steel plate from stock or directly from the mill to customer destinations on a global footing.BS4360 50B Specification:Thickness:1mm to 100mm;Width:1500mm to 3500mm:Length:3000mm to 27000mm.BS4360 50B Extra Service: Pretreatment(Shot Blasting,Sand Blast,Painting and Galvanized),Cutting Parts,Sample Service,Third Party inspection,UT Test and Size inspection.

The chemical composition of BS4360 50B steel:

Grade	BS4360 50B The Element Max (%)
Grade	C	Si	Mn	P	S	Nb	V
BS4360 50B	0.20	<=0.50	1.50	0.050	0.050	0.003/0.10	0.003/0.10

BS4360 50B Mechanical Property

Grade	Thickness(mm)	Min Yield (Mpa)	Thickness(mm)	Min Elongation (%)
BS4360 50B	<=16mm	355Mpa	80mm	20
	16-40mm	345Mpa	200mm	18
	40-63mm	340Mpa	5.65 so	20
	63-100mm	325Mpa
	100-150mm	305Mpa
Min Yield (Mpa)
490/540

If you have any need BS4360 50B steel plate,please feel free to contact us soon.we sincerely hope old and new customers to visit our mill for a long steel business.If you have any requirement in steel plate for BS4360 50B,whether the new plate or stock list of material, please feel free to contact us by email of calling.
